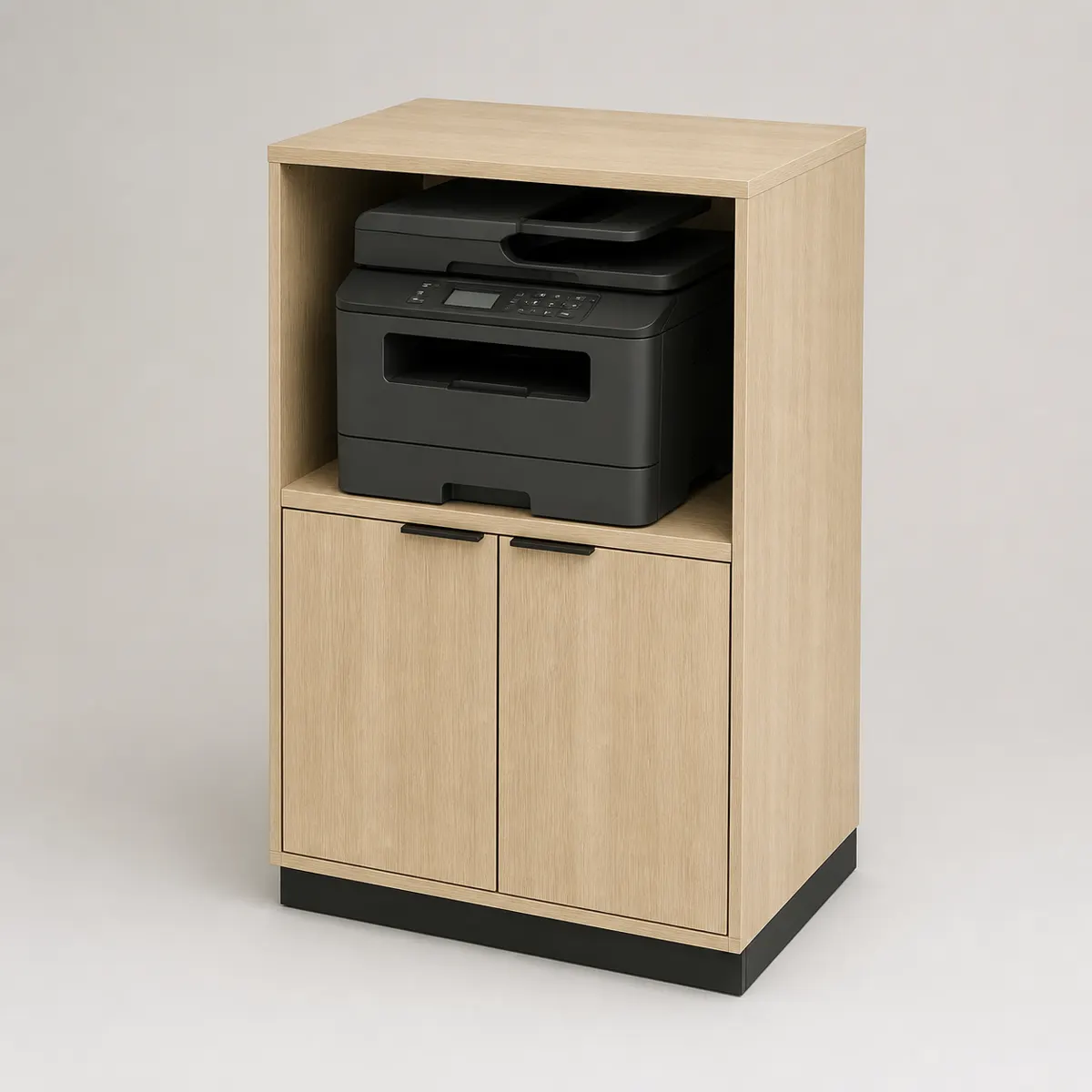

Integrated printer bay
integrated-printer-bay
dresses furniture:printer
— and nothing else. Appearance is invisible to the drawing set, so adding this changes no
plan, no section and no elevation.
Used in examplesWorkplace Elements
- 10of 500 meshes
- 3slots
- 1finish
Drag to orbit · scroll to zoom
$frame
$surface
$hardware
This definition leaves
$frame and $surface and $hardware
open, and a look line fills them. Every combination is one body — same
geometry, same selector, same sheets — so the block below rewrites itself as you pick.
Only materials are slottable: a size would have to agree with the plan, so it stays on
the entity.
Generated views
The body and its drawing evidence
The A-101 panel is the built-in plan symbol at its default envelope, not
a top-down image of this lookdef. The deterministic renders check the
body's footprint, structure and depth. Geometry, material and the
selected finish stay unchanged.
Paste this
Every part: the 3 materialdefs the body resolves to, then the definition. Copying the lookdef alone still compiles and still validates — it just renders grey.
{"t":"materialdef","id":"pal-steel-dark","of":"steel","value":20}
{"t":"materialdef","id":"wpod-oak","of":"timber","value":58,"accent":"#9b744f","body":{"roughness":0.68}}
{"t":"materialdef","id":"wpod-screen","of":"membrane","value":20,"accent":"#20252a","body":{"roughness":0.16,"metalness":0.22}}
{"t":"lookdef","id":"integrated-printer-bay","name":"Integrated printer bay","for":"furniture:printer","desc":"Oak utility cabinet with a graphite multifunction printer in an open upper niche.","slots":{"frame":"wpod-oak","surface":"wpod-screen","hardware":"pal-steel-dark"},"note":"Natural box is 1 × 1.6 × 0.65; the upper niche stays open around the printer while two lower doors provide a clear cabinet base.","body":{"type":"Group","children":[{"type":"bimtex:Run","count":2,"from":[-0.47,0,0],"to":[0.47,0,0],"children":[{"type":"Mesh","material":"$frame","geometry":{"type":"RoundedBoxGeometry","width":0.06,"height":1.52,"depth":0.62,"radius":0.018,"segments":3},"position":[0,0.8,0]}]},{"type":"Mesh","material":"$frame","geometry":{"type":"RoundedBoxGeometry","width":1,"height":0.06,"depth":0.65,"radius":0.018,"segments":3},"position":[0,1.57,0]},{"type":"Mesh","material":"$frame","geometry":{"type":"RoundedBoxGeometry","width":0.94,"height":0.06,"depth":0.62,"radius":0.018,"segments":3},"position":[0,0.76,0]},{"type":"Mesh","material":"$hardware","geometry":{"type":"RoundedBoxGeometry","width":0.9,"height":0.1,"depth":0.58,"radius":0.018,"segments":3},"position":[0,0.05,0]},{"type":"bimtex:Run","count":2,"from":[-0.235,0,0],"to":[0.235,0,0],"children":[{"type":"Mesh","material":"$frame","geometry":{"type":"RoundedBoxGeometry","width":0.44,"height":0.62,"depth":0.025,"radius":0.012,"segments":3},"position":[0,0.43,0.326]},{"type":"Mesh","material":"$hardware","geometry":{"type":"RoundedBoxGeometry","width":0.13,"height":0.035,"depth":0.035,"radius":0.008,"segments":3},"position":[0,0.7,0.347]}]},{"type":"Mesh","material":"$surface","geometry":{"type":"RoundedBoxGeometry","width":0.76,"height":0.52,"depth":0.55,"radius":0.07,"segments":4},"position":[0,1.08,0]},{"type":"Mesh","material":"$surface","geometry":{"type":"RoundedBoxGeometry","width":0.68,"height":0.12,"depth":0.52,"radius":0.045,"segments":4},"position":[0,1.4,-0.01]},{"type":"Mesh","material":"$hardware","geometry":{"type":"RoundedBoxGeometry","width":0.46,"height":0.12,"depth":0.025,"radius":0.03,"segments":3},"position":[0,1.08,0.288]},{"type":"Mesh","material":"$hardware","geometry":{"type":"RoundedBoxGeometry","width":0.22,"height":0.08,"depth":0.025,"radius":0.02,"segments":3},"position":[0.2,1.3,0.288]}]},"preview":{"projection":"perspective","azimuth":38,"elevation":16,"fov":34,"margin":1.03}}Or take the whole pack, which brings every entry and every material at once:
cat packs/workplace.ndjson model.ndjson > dressed.ndjson
