Upholstered focus pod
upholstered-focus-pod
dresses asset:soft-seating-pod
— and nothing else. Appearance is invisible to the drawing set, so adding this changes no
plan, no section and no elevation.
Used in examplesWorkplace Elements
- 7of 500 meshes
- 4slots
- 1finish
Drag to orbit · scroll to zoom
$frame
$soft
$surface
$hardware
This definition leaves
$frame and $soft and $surface and $hardware
open, and a look line fills them. Every combination is one body — same
geometry, same selector, same sheets — so the block below rewrites itself as you pick.
Only materials are slottable: a size would have to agree with the plan, so it stays on
the entity.
Generated views
The body and its drawing evidence
The deterministic renders check the body's footprint, structure and depth. Geometry, material and the selected finish stay unchanged.
Paste this
Every part: the 4 materialdefs the body resolves to, then the definition. Copying the lookdef alone still compiles and still validates — it just renders grey.
{"t":"materialdef","id":"pal-steel-dark","of":"steel","value":20}
{"t":"materialdef","id":"wpod-blue","of":"cloth","value":42,"accent":"#234d83","body":{"sheen":0.35,"sheenColor":"#4d76aa","sheenRoughness":0.72}}
{"t":"materialdef","id":"wpod-oak","of":"timber","value":58,"accent":"#9b744f","body":{"roughness":0.68}}
{"t":"materialdef","id":"wpod-oatmeal","of":"boucle","value":80,"accent":"#d8cbb8","body":{"sheen":0.28,"sheenColor":"#efe4d2","sheenRoughness":0.82}}

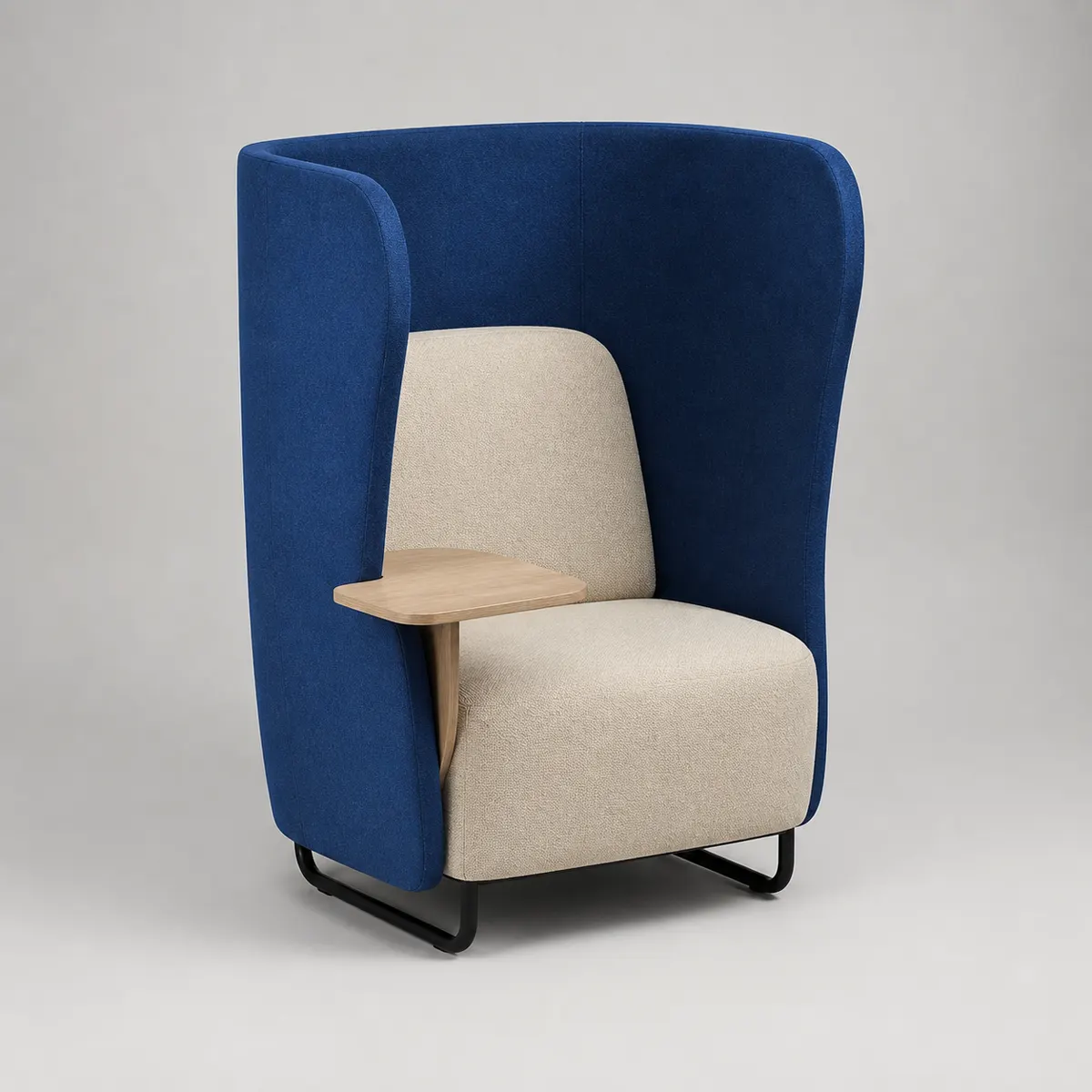

{"t":"lookdef","id":"upholstered-focus-pod","name":"Upholstered focus pod","for":"asset:soft-seating-pod","desc":"High-backed blue acoustic lounge pod with oatmeal cushions and an integrated oak side table.","slots":{"frame":"wpod-blue","soft":"wpod-oatmeal","surface":"wpod-oak","hardware":"pal-steel-dark"},"note":"Natural box is 1.1 × 1.5 × 1; the wraparound shell is open at the front and the small work surface stays visibly attached to the seat.","body":{"type":"Group","children":[{"type":"Mesh","material":"$frame","geometry":{"type":"RoundedBoxGeometry","width":1.1,"height":1.42,"depth":0.12,"radius":0.08,"segments":4},"position":[0,0.78,-0.44]},{"type":"bimtex:Run","count":2,"from":[-0.49,0,0],"to":[0.49,0,0],"children":[{"type":"Mesh","material":"$frame","geometry":{"type":"RoundedBoxGeometry","width":0.12,"height":1.25,"depth":0.88,"radius":0.08,"segments":4},"position":[0,0.7,-0.02]}]},{"type":"Mesh","material":"$soft","geometry":{"type":"RoundedBoxGeometry","width":0.76,"height":0.24,"depth":0.66,"radius":0.09,"segments":4},"position":[0,0.38,0.08]},{"type":"Mesh","material":"$soft","geometry":{"type":"RoundedBoxGeometry","width":0.72,"height":0.72,"depth":0.16,"radius":0.08,"segments":4},"position":[0,0.86,-0.32],"rotation":[-0.1,0,0]},{"type":"Mesh","material":"$surface","geometry":{"type":"RoundedBoxGeometry","width":0.36,"height":0.045,"depth":0.34,"radius":0.035,"segments":4},"position":[-0.29,0.72,0.24]},{"type":"Mesh","material":"$surface","geometry":{"type":"RoundedBoxGeometry","width":0.05,"height":0.38,"depth":0.2,"radius":0.018,"segments":3},"position":[-0.43,0.51,0.14]},{"type":"bimtex:Run","count":2,"from":[-0.34,0,0],"to":[0.34,0,0],"children":[{"type":"Mesh","material":"$hardware","geometry":{"type":"TubeGeometry","path":[[0,0.02,-0.32],[0,0.02,0.34],[0,0.12,0.39]],"radius":0.025,"radialSegments":10,"tubularSegments":14}}]}]},"preview":{"projection":"perspective","azimuth":38,"elevation":16,"fov":34,"margin":1.03}}Or take the whole pack, which brings every entry and every material at once:
cat packs/workplace.ndjson model.ndjson > dressed.ndjson
