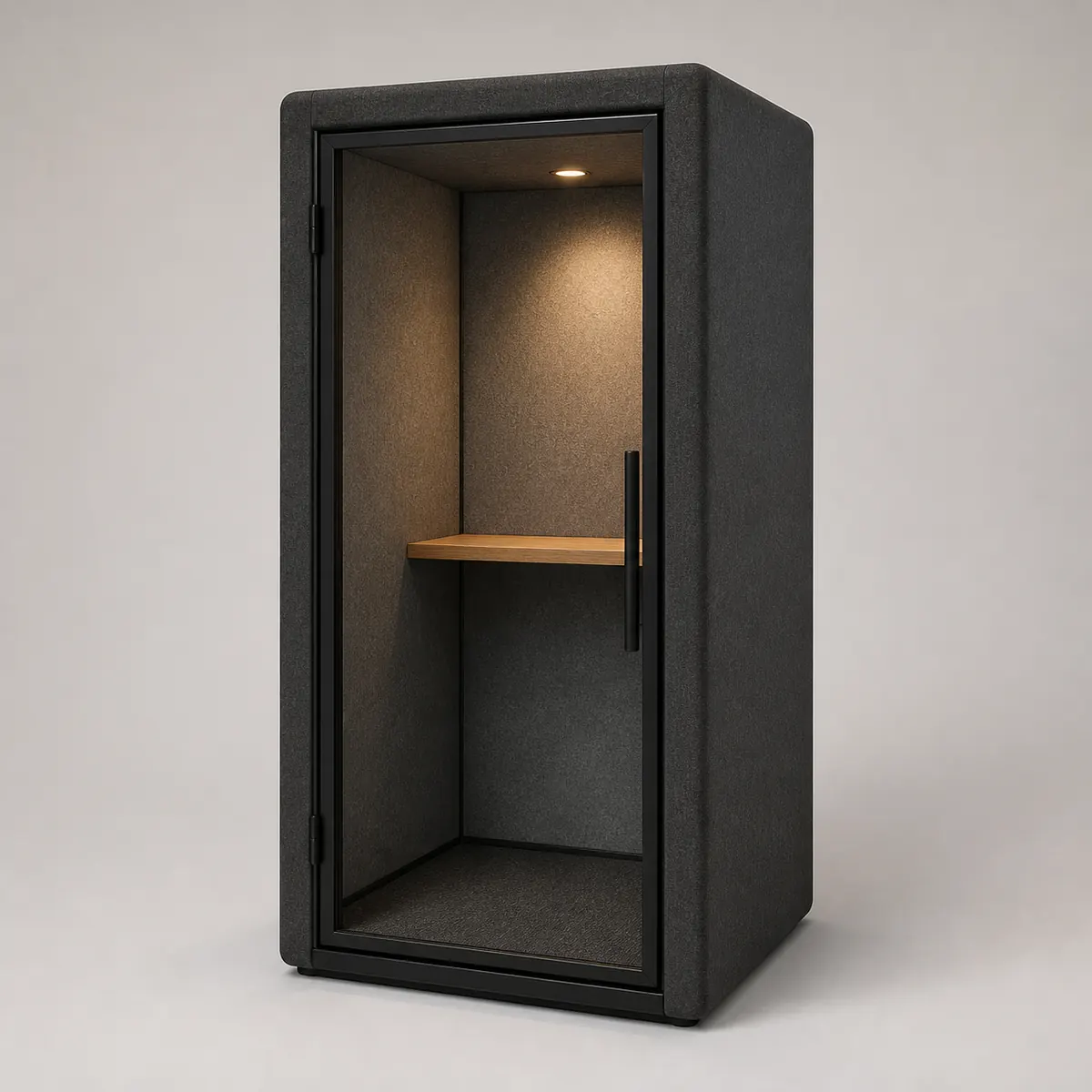

Plan-symbol acoustic phone booth
furniture-acoustic-phone-booth
dresses furniture:phone-booth
— and nothing else. Appearance is invisible to the drawing set, so adding this changes no
plan, no section and no elevation.
- 9of 500 meshes
- 5slots
- 1finish
Drag to orbit · scroll to zoom
$frame
$frame:bark
$glazing
$hardware
$accent
This definition leaves
$frame and $frame:bark and $glazing and $hardware and $accent
open, and a look line fills them. Every combination is one body — same
geometry, same selector, same sheets — so the block below rewrites itself as you pick.
Only materials are slottable: a size would have to agree with the plan, so it stays on
the entity.
Generated views
The body and its drawing evidence
The A-101 panel is the built-in plan symbol at its default envelope, not
a top-down image of this lookdef. The deterministic renders check the
body's footprint, structure and depth. Geometry, material and the
selected finish stay unchanged.
Paste this
Every part: the 5 materialdefs the body resolves to, then the definition. Copying the lookdef alone still compiles and still validates — it just renders grey.
{"t":"materialdef","id":"pal-steel-dark","of":"steel","value":20}
{"t":"materialdef","id":"wpod-glass","of":"glass","value":86,"body":{"type":"MeshPhysicalMaterial","transmission":1,"ior":1.5,"thickness":0.01,"roughness":0.04,"transparent":true,"opacity":0.22,"depthWrite":false}}
{"t":"materialdef","id":"wpod-light","of":"paint","value":92,"accent":"#fff6df","body":{"emissive":"#fff6df","emissiveIntensity":1.4,"roughness":0.2}}
{"t":"materialdef","id":"wpod-oak","of":"timber","value":58,"accent":"#9b744f","body":{"roughness":0.68}}
{"t":"materialdef","id":"wpod-shell","of":"cloth","value":20,"accent":"#303438","body":{"sheen":0.15,"sheenColor":"#666b70","sheenRoughness":0.86}}
{"t":"lookdef","id":"furniture-acoustic-phone-booth","name":"Plan-symbol acoustic phone booth","for":"furniture:phone-booth","desc":"Single-person acoustic booth aligned to the phone-booth plan symbol.","slots":{"frame":"wpod-shell","frame:bark":"wpod-oak","glazing":"wpod-glass","hardware":"pal-steel-dark","accent":"wpod-light"},"note":"Natural box is 1.1 × 2.2 × 1.1, matching the furniture default overall height rather than treating 2.2 m as an internal clear height.","body":{"type":"Group","children":[{"type":"Mesh","material":"$frame","geometry":{"type":"RoundedBoxGeometry","width":1.1,"height":2.2,"depth":0.09,"radius":0.045,"segments":4},"position":[0,1.1,-0.505]},{"type":"Mesh","material":"$frame","geometry":{"type":"RoundedBoxGeometry","width":0.09,"height":2.2,"depth":1.01,"radius":0.04,"segments":4},"position":[-0.505,1.1,0]},{"type":"Mesh","material":"$frame","geometry":{"type":"RoundedBoxGeometry","width":0.09,"height":2.2,"depth":1.01,"radius":0.04,"segments":4},"position":[0.505,1.1,0]},{"type":"Mesh","material":"$frame","geometry":{"type":"RoundedBoxGeometry","width":1.1,"height":0.09,"depth":1.1,"radius":0.04,"segments":4},"position":[0,2.155,0]},{"type":"Mesh","material":"$frame","geometry":{"type":"RoundedBoxGeometry","width":1.1,"height":0.09,"depth":1.1,"radius":0.04,"segments":4},"position":[0,0.045,0]},{"type":"Mesh","material":"$glazing","geometry":{"type":"RoundedBoxGeometry","width":0.9,"height":1.94,"depth":0.035,"radius":0.028,"segments":4},"position":[0,1.08,0.522]},{"type":"Mesh","material":"$hardware","geometry":{"type":"RoundedBoxGeometry","width":0.035,"height":0.34,"depth":0.04,"radius":0.012,"segments":3},"position":[0.38,1.05,0.545]},{"type":"Mesh","material":"$frame:bark","geometry":{"type":"RoundedBoxGeometry","width":0.76,"height":0.06,"depth":0.34,"radius":0.02,"segments":3},"position":[0,1.18,-0.32]},{"type":"Mesh","material":"$accent","geometry":{"type":"CylinderGeometry","radiusTop":0.12,"radiusBottom":0.12,"height":0.025,"radialSegments":24},"position":[0,2.02,0]}]},"preview":{"projection":"perspective","azimuth":115,"elevation":24,"fov":34,"margin":1.06}}Or take the whole pack, which brings every entry and every material at once:
cat packs/workplace.ndjson model.ndjson > dressed.ndjson
