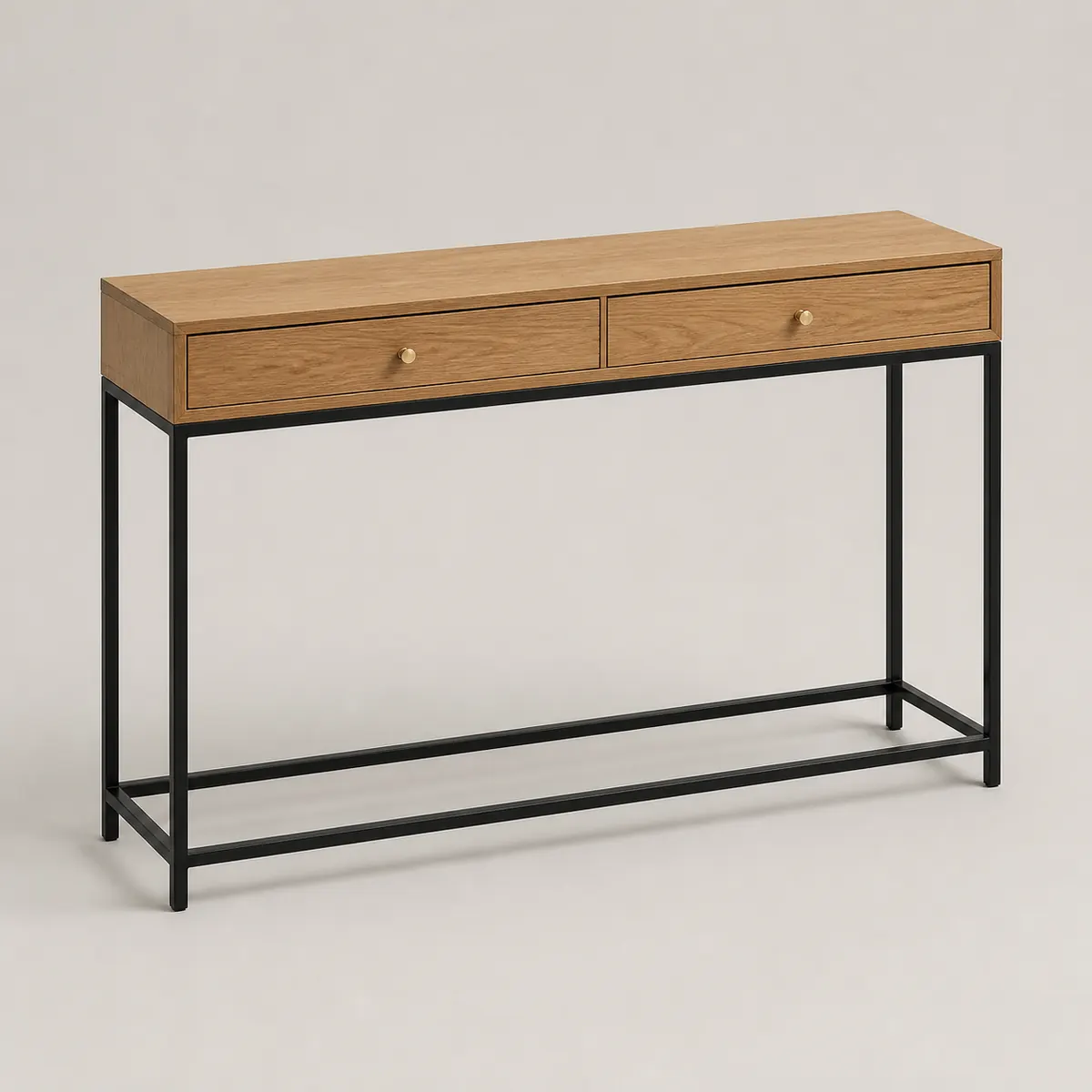

Slim drawer console
slim-drawer-console
dresses furniture:console-table
— and nothing else. Appearance is invisible to the drawing set, so adding this changes no
plan, no section and no elevation.
- 9of 500 meshes
- 3slots
- 1finish
Drag to orbit · scroll to zoom
$surface
$frame
$hardware
This definition leaves
$surface and $frame and $hardware
open, and a look line fills them. Every combination is one body — same
geometry, same selector, same sheets — so the block below rewrites itself as you pick.
Only materials are slottable: a size would have to agree with the plan, so it stays on
the entity.
Generated views
The body and its drawing evidence
The A-101 panel is the built-in plan symbol at its default envelope, not
a top-down image of this lookdef. The deterministic renders check the
body's footprint, structure and depth. Geometry, material and the
selected finish stay unchanged.
Paste this
Every part: the 3 materialdefs the body resolves to, then the definition. Copying the lookdef alone still compiles and still validates — it just renders grey.
{"t":"materialdef","id":"pack-int-black","of":"membrane","value":20,"body":{"roughness":0.44,"metalness":0.3}}
{"t":"materialdef","id":"pack-int-brass","of":"brass","value":58,"accent":"#b08d52","body":{"metalness":0.75}}
{"t":"materialdef","id":"pack-int-oak","of":"timber","value":58,"hatch":"timber"}
{"t":"lookdef","id":"slim-drawer-console","name":"Slim drawer console","for":"furniture:console-table","desc":"Narrow oak console table with two shallow drawers and a black steel stretcher frame.","slots":{"surface":"pack-int-oak","frame":"pack-int-black","hardware":"pack-int-brass"},"note":"Natural box is 1.2 × 0.78 × 0.35; the top is intentionally shallow and the open frame preserves negative space below the drawers.","body":{"type":"Group","children":[{"type":"Mesh","material":"$surface","geometry":{"type":"RoundedBoxGeometry","width":1.2,"height":0.06,"depth":0.35,"radius":0.025,"segments":3},"position":[0,0.75,0]},{"type":"Mesh","material":"$surface","geometry":{"type":"RoundedBoxGeometry","width":1.04,"height":0.18,"depth":0.31,"radius":0.025,"segments":3},"position":[0,0.63,0]},{"type":"Mesh","material":"$surface","geometry":{"type":"RoundedBoxGeometry","width":0.48,"height":0.14,"depth":0.025,"radius":0.012,"segments":3},"position":[-0.26,0.63,0.168]},{"type":"Mesh","material":"$surface","geometry":{"type":"RoundedBoxGeometry","width":0.48,"height":0.14,"depth":0.025,"radius":0.012,"segments":3},"position":[0.26,0.63,0.168]},{"type":"Mesh","material":"$hardware","geometry":{"type":"CapsuleGeometry","radius":0.012,"height":0.1,"capSegments":4,"radialSegments":10},"position":[-0.26,0.63,0.188],"rotation":[0,0,1.5708]},{"type":"Mesh","material":"$hardware","geometry":{"type":"CapsuleGeometry","radius":0.012,"height":0.1,"capSegments":4,"radialSegments":10},"position":[0.26,0.63,0.188],"rotation":[0,0,1.5708]},{"type":"bimtex:Run","count":2,"from":[-0.5,0,-0.12],"to":[0.5,0,-0.12],"children":[{"type":"Mesh","material":"$frame","geometry":{"type":"CylinderGeometry","radiusTop":0.022,"radiusBottom":0.022,"height":0.58,"radialSegments":14},"position":[0,0.29,0]}]},{"type":"bimtex:Run","count":2,"from":[-0.5,0,0.12],"to":[0.5,0,0.12],"children":[{"type":"Mesh","material":"$frame","geometry":{"type":"CylinderGeometry","radiusTop":0.022,"radiusBottom":0.022,"height":0.58,"radialSegments":14},"position":[0,0.29,0]}]},{"type":"Mesh","material":"$frame","geometry":{"type":"TubeGeometry","path":[[-0.5,0.12,-0.12],[-0.5,0.12,0.12],[0.5,0.12,0.12],[0.5,0.12,-0.12]],"radius":0.016,"radialSegments":10,"tubularSegments":18}}]},"preview":{"projection":"perspective","azimuth":38,"elevation":20,"fov":34,"margin":1.04}}Or take the whole pack, which brings every entry and every material at once:
cat packs/interiors.ndjson model.ndjson > dressed.ndjson
