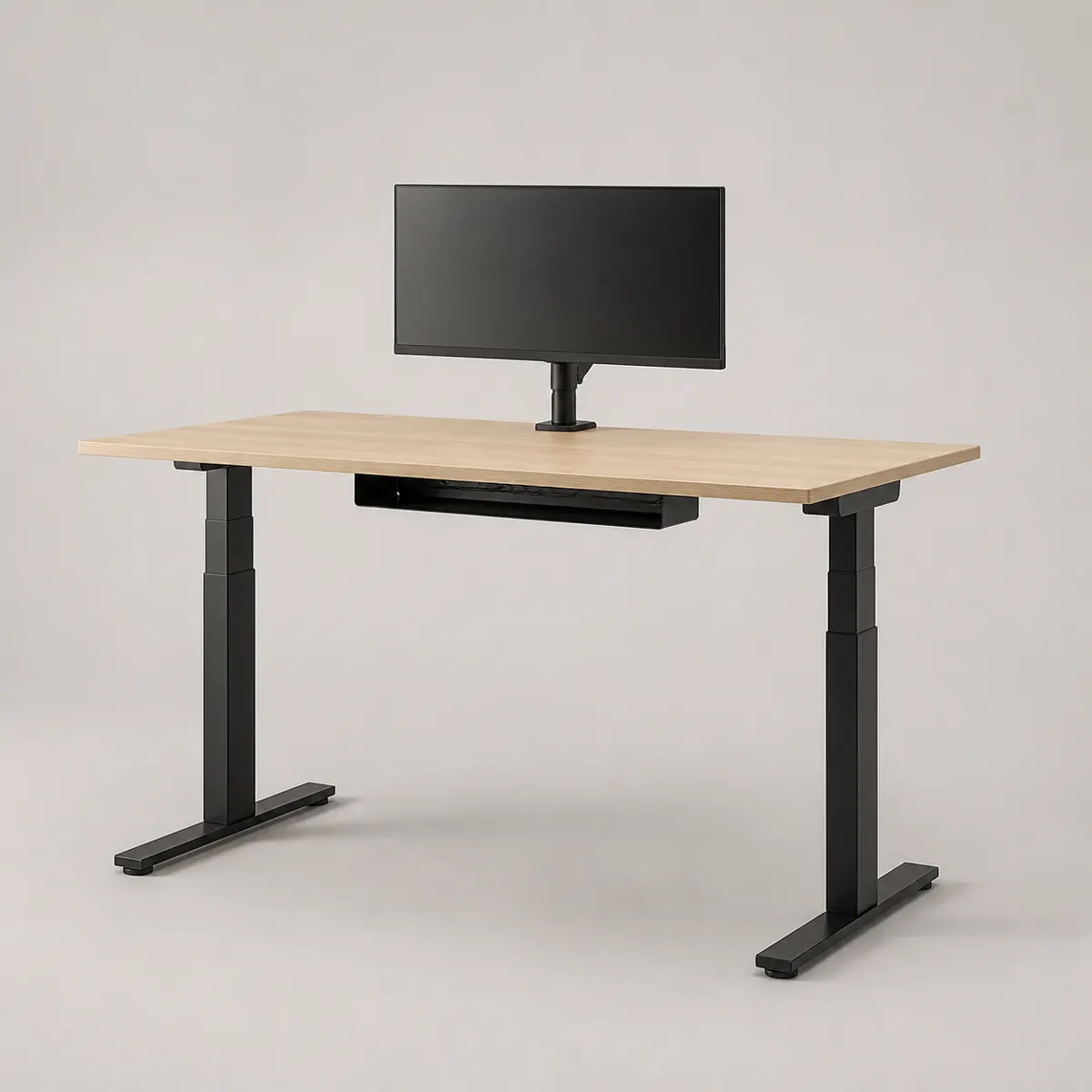

Sit-stand screen workstation
sit-stand-screen-workstation
dresses furniture:standing-desk
— and nothing else. Appearance is invisible to the drawing set, so adding this changes no
plan, no section and no elevation.
Used in examplesWorkplace Elements
- 7of 500 meshes
- 4slots
- 1finish
Drag to orbit · scroll to zoom
$surface
$frame
$hardware
$accent
This definition leaves
$surface and $frame and $hardware and $accent
open, and a look line fills them. Every combination is one body — same
geometry, same selector, same sheets — so the block below rewrites itself as you pick.
Only materials are slottable: a size would have to agree with the plan, so it stays on
the entity.
Generated views
The body and its drawing evidence
The A-101 panel is the built-in plan symbol at its default envelope, not
a top-down image of this lookdef. The deterministic renders check the
body's footprint, structure and depth. Geometry, material and the
selected finish stay unchanged.
Paste this
Every part: the 4 materialdefs the body resolves to, then the definition. Copying the lookdef alone still compiles and still validates — it just renders grey.
{"t":"materialdef","id":"pal-steel-dark","of":"steel","value":20}
{"t":"materialdef","id":"wpod-metal","of":"steel","value":42,"accent":"#4d555a","body":{"metalness":0.62}}
{"t":"materialdef","id":"wpod-oak","of":"timber","value":58,"accent":"#9b744f","body":{"roughness":0.68}}
{"t":"materialdef","id":"wpod-screen","of":"membrane","value":20,"accent":"#20252a","body":{"roughness":0.16,"metalness":0.22}}
{"t":"lookdef","id":"sit-stand-screen-workstation","name":"Sit-stand screen workstation","for":"furniture:standing-desk","desc":"Pale oak sit-stand desk with twin lifting columns, cable tray and a single widescreen monitor.","slots":{"surface":"wpod-oak","frame":"wpod-metal","hardware":"pal-steel-dark","accent":"wpod-screen"},"note":"Natural box is 1.5 × 1.4 × 0.75; the screen stays centred over the rear edge while the lifting columns and T-feet remain visible from both office aisles.","body":{"type":"Group","children":[{"type":"Mesh","material":"$surface","geometry":{"type":"RoundedBoxGeometry","width":1.5,"height":0.06,"depth":0.75,"radius":0.025,"segments":3},"position":[0,0.76,0]},{"type":"bimtex:Run","count":2,"from":[-0.58,0,0],"to":[0.58,0,0],"children":[{"type":"Mesh","material":"$frame","geometry":{"type":"RoundedBoxGeometry","width":0.1,"height":0.72,"depth":0.1,"radius":0.018,"segments":3},"position":[0,0.38,0]},{"type":"Mesh","material":"$frame","geometry":{"type":"RoundedBoxGeometry","width":0.12,"height":0.04,"depth":0.65,"radius":0.015,"segments":3},"position":[0,0.02,0]}]},{"type":"Mesh","material":"$hardware","geometry":{"type":"RoundedBoxGeometry","width":0.72,"height":0.08,"depth":0.24,"radius":0.018,"segments":3},"position":[0,0.68,0.02]},{"type":"Mesh","material":"$frame","geometry":{"type":"CylinderGeometry","radiusTop":0.035,"radiusBottom":0.045,"height":0.32,"radialSegments":16},"position":[0,0.95,-0.2]},{"type":"Mesh","material":"$frame","geometry":{"type":"RoundedBoxGeometry","width":0.76,"height":0.46,"depth":0.055,"radius":0.025,"segments":3},"position":[0,1.2,-0.2]},{"type":"Mesh","material":"$accent","geometry":{"type":"RoundedBoxGeometry","width":0.7,"height":0.4,"depth":0.018,"radius":0.018,"segments":3},"position":[0,1.2,-0.162]}]},"preview":{"projection":"perspective","azimuth":38,"elevation":18,"fov":34,"margin":1.04}}Or take the whole pack, which brings every entry and every material at once:
cat packs/workplace.ndjson model.ndjson > dressed.ndjson
