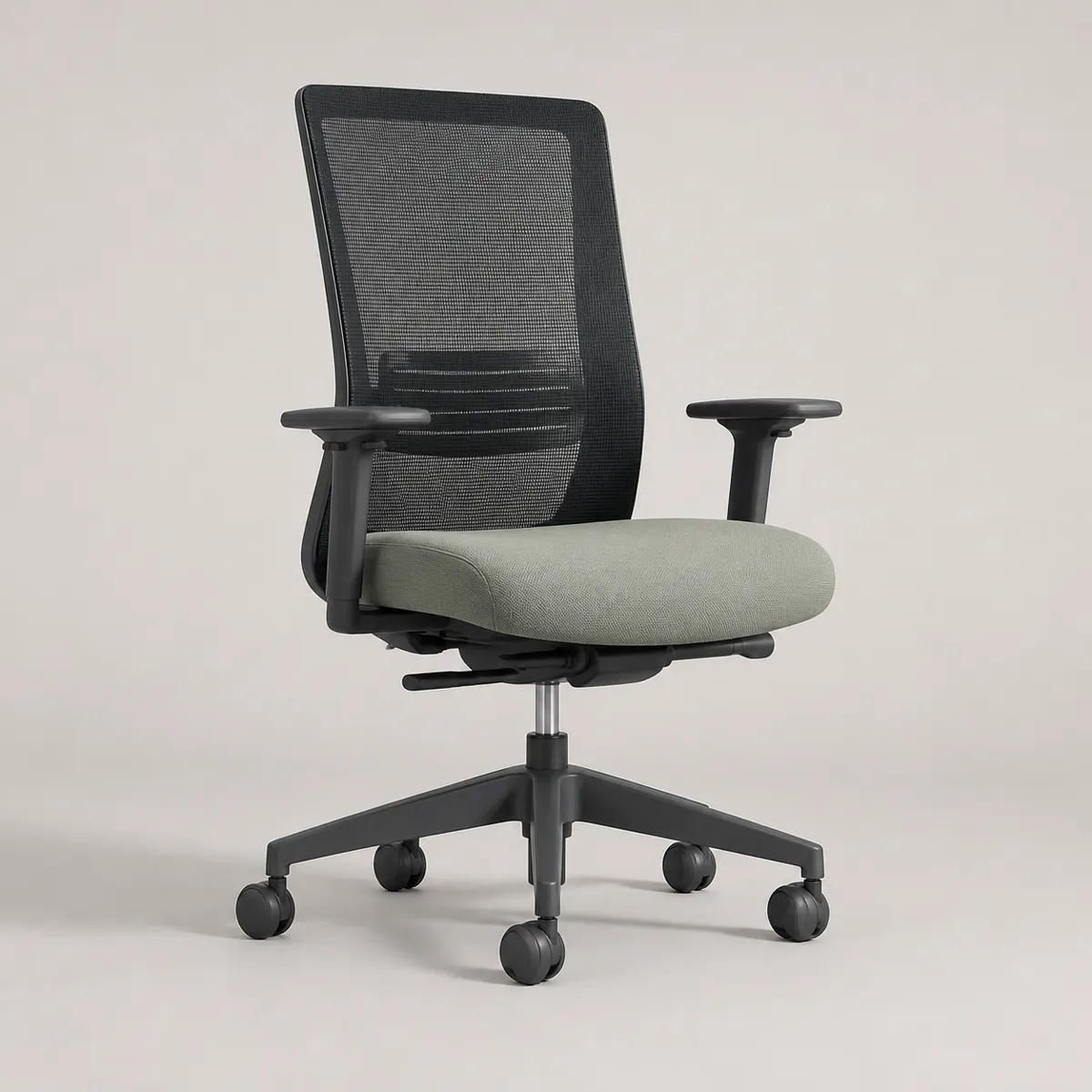

Mesh task chair
mesh-task-chair
dresses asset:task-chair
— and nothing else. Appearance is invisible to the drawing set, so adding this changes no
plan, no section and no elevation.
Used in examplesWorkplace Elements
- 18of 500 meshes
- 4slots
- 1finish
Drag to orbit · scroll to zoom
$soft
$frame
$surface
$hardware
This definition leaves
$soft and $frame and $surface and $hardware
open, and a look line fills them. Every combination is one body — same
geometry, same selector, same sheets — so the block below rewrites itself as you pick.
Only materials are slottable: a size would have to agree with the plan, so it stays on
the entity.
Generated views
The body and its drawing evidence
The deterministic renders check the body's footprint, structure and depth. Geometry, material and the selected finish stay unchanged.
Paste this
Every part: the 4 materialdefs the body resolves to, then the definition. Copying the lookdef alone still compiles and still validates — it just renders grey.
{"t":"materialdef","id":"pal-steel-dark","of":"steel","value":20}
{"t":"materialdef","id":"wpod-metal","of":"steel","value":42,"accent":"#4d555a","body":{"metalness":0.62}}
{"t":"materialdef","id":"wpod-sage","of":"paint","value":58,"accent":"#7b846e","body":{"roughness":0.78}}
{"t":"materialdef","id":"wpod-shell","of":"cloth","value":20,"accent":"#303438","body":{"sheen":0.15,"sheenColor":"#666b70","sheenRoughness":0.86}}
{"t":"lookdef","id":"mesh-task-chair","name":"Mesh task chair","for":"asset:task-chair","desc":"Ergonomic workplace chair with sage seat, mesh back, lumbar band and five-star caster base.","slots":{"soft":"wpod-sage","frame":"wpod-metal","surface":"wpod-shell","hardware":"pal-steel-dark"},"note":"Natural box is 0.72 × 1.15 × 0.72; the open mesh panel, lumbar band and radial base keep the chair distinct from a dining chair.","body":{"type":"Group","children":[{"type":"Mesh","material":"$soft","geometry":{"type":"RoundedBoxGeometry","width":0.56,"height":0.13,"depth":0.5,"radius":0.075,"segments":4},"position":[0,0.56,0.02]},{"type":"Mesh","material":"$frame","geometry":{"type":"RoundedBoxGeometry","width":0.58,"height":0.62,"depth":0.055,"radius":0.05,"segments":4},"position":[0,0.89,-0.235],"rotation":[-0.08,0,0]},{"type":"Mesh","material":"$surface","geometry":{"type":"RoundedBoxGeometry","width":0.51,"height":0.53,"depth":0.018,"radius":0.035,"segments":3},"position":[0,0.89,-0.198],"rotation":[-0.08,0,0]},{"type":"Mesh","material":"$frame","geometry":{"type":"RoundedBoxGeometry","width":0.38,"height":0.055,"depth":0.045,"radius":0.018,"segments":3},"position":[0,0.79,-0.18]},{"type":"Mesh","material":"$hardware","geometry":{"type":"CylinderGeometry","radiusTop":0.035,"radiusBottom":0.05,"height":0.4,"radialSegments":16},"position":[0,0.32,0]},{"type":"Mesh","material":"$frame","geometry":{"type":"CylinderGeometry","radiusTop":0.1,"radiusBottom":0.1,"height":0.07,"radialSegments":18},"position":[0,0.14,0]},{"type":"bimtex:Run","count":2,"from":[-0.34,0,0],"to":[0.34,0,0],"children":[{"type":"Mesh","material":"$frame","geometry":{"type":"RoundedBoxGeometry","width":0.045,"height":0.32,"depth":0.045,"radius":0.014,"segments":3},"position":[0,0.72,0]},{"type":"Mesh","material":"$hardware","geometry":{"type":"RoundedBoxGeometry","width":0.16,"height":0.04,"depth":0.2,"radius":0.02,"segments":3},"position":[0,0.88,0]}]},{"type":"Mesh","material":"$frame","geometry":{"type":"TubeGeometry","path":[[0,0.14,0],[0.31,0.08,0],[0.33,0.06,0.02]],"radius":0.028,"radialSegments":10,"tubularSegments":12}},{"type":"Mesh","material":"$frame","geometry":{"type":"TubeGeometry","path":[[0,0.14,0],[-0.25,0.08,0.18],[-0.28,0.06,0.2]],"radius":0.028,"radialSegments":10,"tubularSegments":12}},{"type":"Mesh","material":"$frame","geometry":{"type":"TubeGeometry","path":[[0,0.14,0],[-0.25,0.08,-0.18],[-0.28,0.06,-0.2]],"radius":0.028,"radialSegments":10,"tubularSegments":12}},{"type":"Mesh","material":"$frame","geometry":{"type":"TubeGeometry","path":[[0,0.14,0],[0.1,0.08,0.31],[0.11,0.06,0.34]],"radius":0.028,"radialSegments":10,"tubularSegments":12}},{"type":"Mesh","material":"$frame","geometry":{"type":"TubeGeometry","path":[[0,0.14,0],[0.1,0.08,-0.31],[0.11,0.06,-0.34]],"radius":0.028,"radialSegments":10,"tubularSegments":12}},{"type":"Mesh","material":"$hardware","geometry":{"type":"TorusGeometry","radius":0.035,"tube":0.018,"radialSegments":8,"tubularSegments":16},"position":[0.33,0.045,0.02],"rotation":[0,1.5708,0]},{"type":"Mesh","material":"$hardware","geometry":{"type":"TorusGeometry","radius":0.035,"tube":0.018,"radialSegments":8,"tubularSegments":16},"position":[-0.28,0.045,0.2],"rotation":[1.5708,0,0]},{"type":"Mesh","material":"$hardware","geometry":{"type":"TorusGeometry","radius":0.035,"tube":0.018,"radialSegments":8,"tubularSegments":16},"position":[-0.28,0.045,-0.2],"rotation":[1.5708,0,0]},{"type":"Mesh","material":"$hardware","geometry":{"type":"TorusGeometry","radius":0.035,"tube":0.018,"radialSegments":8,"tubularSegments":16},"position":[0.11,0.045,0.34],"rotation":[0,1.5708,0]},{"type":"Mesh","material":"$hardware","geometry":{"type":"TorusGeometry","radius":0.035,"tube":0.018,"radialSegments":8,"tubularSegments":16},"position":[0.11,0.045,-0.34],"rotation":[0,1.5708,0]}]},"preview":{"projection":"perspective","azimuth":38,"elevation":16,"fov":34,"margin":1.04}}Or take the whole pack, which brings every entry and every material at once:
cat packs/workplace.ndjson model.ndjson > dressed.ndjson
