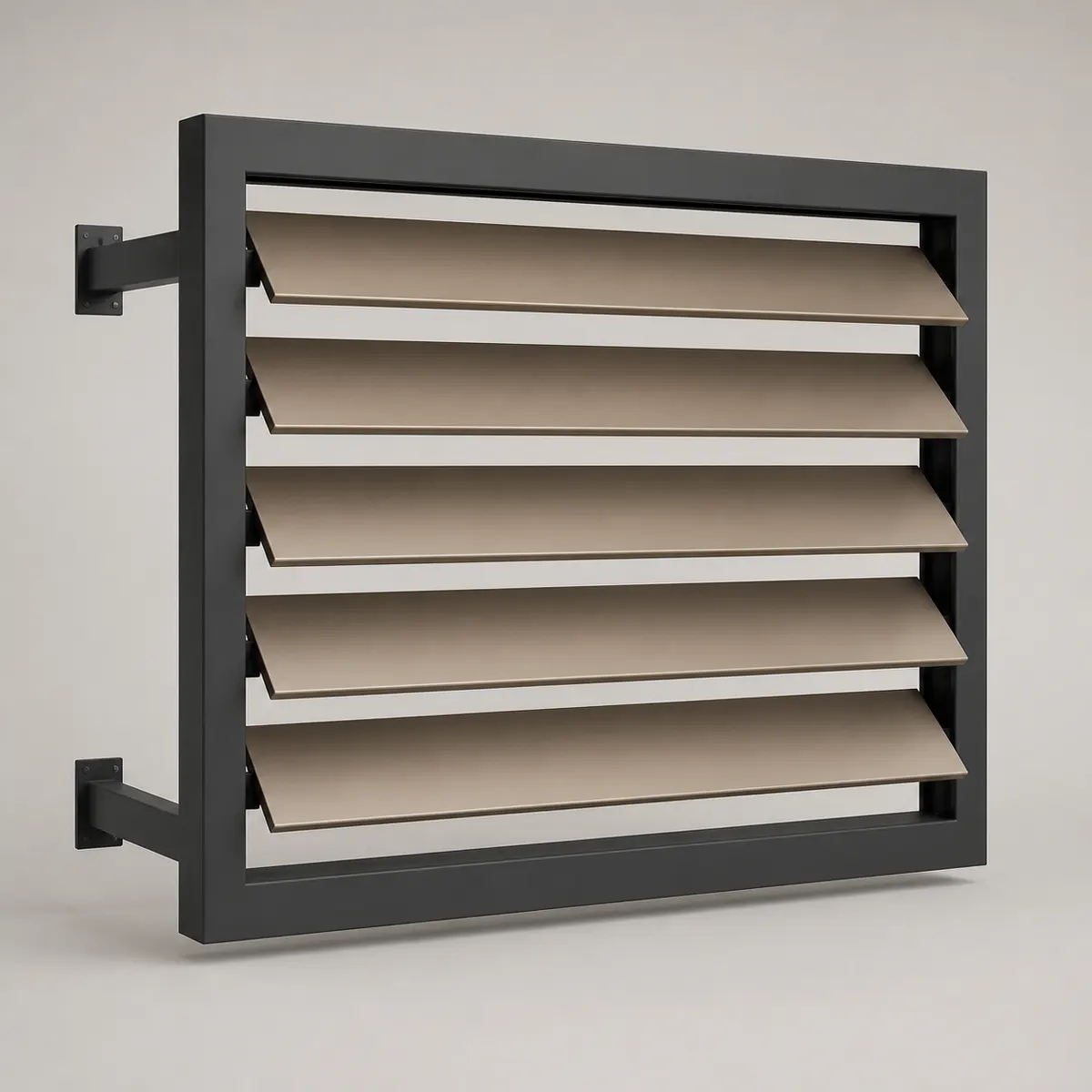

Bronze brise soleil
bronze-brise-soleil
dresses asset:brise-soleil
— and nothing else. Appearance is invisible to the drawing set, so adding this changes no
plan, no section and no elevation.
Used in examplesHouse Exterior Elements
- 5of 500 meshes
- 3slots
- 1finish
Drag to orbit · scroll to zoom
$frame
$surface
$hardware
This definition leaves
$frame and $surface and $hardware
open, and a look line fills them. Every combination is one body — same
geometry, same selector, same sheets — so the block below rewrites itself as you pick.
Only materials are slottable: a size would have to agree with the plan, so it stays on
the entity.
Generated views
The body and its drawing evidence
The deterministic renders check the body's footprint, structure and depth. Geometry, material and the selected finish stay unchanged.
Paste this
Every part: the 3 materialdefs the body resolves to, then the definition. Copying the lookdef alone still compiles and still validates — it just renders grey.
{"t":"materialdef","id":"pack-envelope-bronze","of":"brass","value":58,"accent":"#8c775c","body":{"roughness":0.42,"metalness":0.68}}
{"t":"materialdef","id":"pack-envelope-cast-metal","of":"painted-metal","value":20,"accent":"#303234","body":{"metalness":0.48}}
{"t":"materialdef","id":"pack-envelope-zinc","of":"steel","value":20,"accent":"#3d4347","body":{"roughness":0.38,"metalness":0.72}}
{"t":"lookdef","id":"bronze-brise-soleil","name":"Bronze brise soleil","for":"asset:brise-soleil","desc":"Charcoal perimeter frame with six tilted bronze horizontal sun-control blades and rear standoffs.","slots":{"frame":"pack-envelope-zinc","surface":"pack-envelope-bronze","hardware":"pack-envelope-cast-metal"},"note":"Natural box is 2 × 1.5 × 0.42; open gaps between six tilted blades make the solar-control assembly legible rather than reading as a solid panel.","body":{"type":"Group","children":[{"type":"bimtex:Run","count":2,"from":[-0.96,0,0],"to":[0.96,0,0],"children":[{"type":"Mesh","material":"$frame","geometry":{"type":"RoundedBoxGeometry","width":0.08,"height":1.5,"depth":0.1,"radius":0.012,"segments":3},"position":[0,0.75,0]}]},{"type":"bimtex:Run","count":2,"from":[0,0.04,0],"to":[0,1.46,0],"children":[{"type":"Mesh","material":"$frame","geometry":{"type":"RoundedBoxGeometry","width":2,"height":0.08,"depth":0.1,"radius":0.012,"segments":3},"position":[0,0,0]}]},{"type":"bimtex:Run","count":6,"from":[0,0.22,0],"to":[0,1.28,0],"children":[{"type":"Mesh","material":"$surface","geometry":{"type":"RoundedBoxGeometry","width":1.78,"height":0.055,"depth":0.36,"radius":0.014,"segments":3},"position":[0,0,0.03],"rotation":[0.42,0,0]}]},{"type":"bimtex:Run","count":2,"from":[-0.82,0,0],"to":[0.82,0,0],"children":[{"type":"Mesh","material":"$hardware","geometry":{"type":"RoundedBoxGeometry","width":0.08,"height":0.08,"depth":0.42,"radius":0.012,"segments":3},"position":[0,0.28,-0.16]},{"type":"Mesh","material":"$hardware","geometry":{"type":"RoundedBoxGeometry","width":0.08,"height":0.08,"depth":0.42,"radius":0.012,"segments":3},"position":[0,1.22,-0.16]}]}]},"preview":{"projection":"perspective","azimuth":38,"elevation":14,"fov":34,"margin":1.03}}Or take the whole pack, which brings every entry and every material at once:
cat packs/envelope.ndjson model.ndjson > dressed.ndjson
